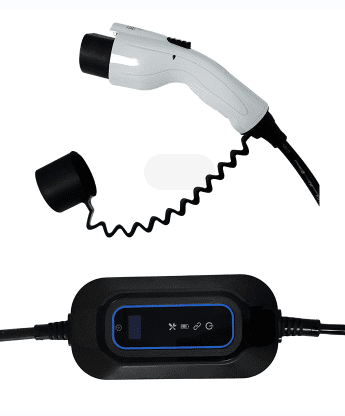

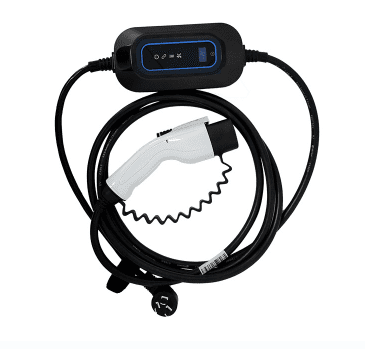

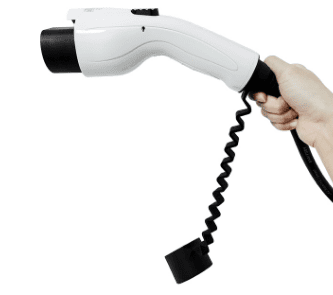

PS3505E07. Portable 1-phase AC household type 2 electric vehicle smart charger. Suitable for US; EU; JP; UK and other international electrical standards; AC240V; 32A; 7kW household type 1 / 2 electric vehicle intelligent charging station.

technical parameter:
Product code: PS3505E07
Trade name: Portable / wall-mounted 1-phase AC household type 2 electric vehicle smart charger
Commodities applicable to: US; EU; JP; UK and other international electrical standards
Input rating: 250V ± 15%
Output rating: 32A; 7kw
Pressure resistance: 2500VAC1 min no breakdown
Insulation: 1; 000 MQ
Insertion force: <100N
Lock retention force: >200N
Frequency range: 50 Hz ± 1%
Operating temperature: -35°C~ + 75°C
Operating humidity: 5%~98%
Cable length: random standard standard 7.5m. Support to purchase 10m; 15m
Cable connector: 1set; SAE J1772; EC61851-1; IEC 62196-2
Connector type: NEMA 5-15 / 6-20 / 6-30 / 6-50 / 10-30 / 10-50 / 14-30 / 14-50 / EU Plug / UK Plug / CEE Plug
Support communication: APP; OCPP1.6J; RS-485; LAN; 4G; RFID card
Connector mechanical working life: 10; 000 times
User interface and control: APP control; button control; card control
Key surface indicators: charging time; real-time current / voltage / power / supply / connection / charge / fault
Quality assurance: 12 months
Waterproof grade: IP65
Noise control: 60 dB
Product certification: 3C; CE; ROHS; REACH

Product features:
1. The APP control of the
△ Set the current: when the power grid is overloaded; you can set the current;
△ Control the stop and start: control the stop and start of your phone; you can control it anywhere;
△ Reservation charging: If you want an electric car to charge at night; booking charging through the APP is a good choice; very convenient;
△ Record: You can view the charge record through the APP at any time;
△ This is the best choice for you into the domestic market.
2. Load balance management:
△ Limit the total charging load can protect the local power grid;
△ Sharing the charging load can reduce the required cost of power connection;
△ Choose the open CT (current transformer) as the current sensor; and there is no physical wiring between the equipment; with the advantages of open and closed installation; convenient and fast wiring; and no additional infrastructure or installation cost.
3. Specifications
△ Material: the front panel is tempered glass; with the advantages of scratch prevention and high quality visual effect. The rear cover is made of high quality metal plate; special integral molding; suitable for indoor and outdoor safety.
△ OEM or ODM available: logo; brand; design; size; color; function; fault information; etc.; support for customization;
△ 3.5-inch highlight LCD screen: display real-time charging current; voltage; power consumption; time;
△ Multi-function installation wall installation or base application.
4. Protect
△ High quality; safe and reliable use of production design standards: overvoltage protection; overvoltage protection; overload protection; short circuit protection; leakage protection; grounding protection; over temperature protection; surge protection; etc.

Purchase more than 10pieces; FOB / Shenzhen single product price 323.56USD/piece; OEM customization.

Note: If the single product weight of DC / AC EV charger is more than 10 KG, both parties shall negotiate the quotation of transportation cost
